Illustration of Line Styles for Annotations

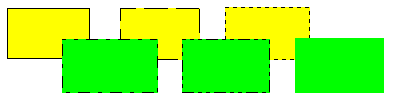

The following rectangle annotation objects illustrate the available line styles. Note that Windows displays all lines greater than 1 pixel as solid.

Rectangle Property Rectangle Property Rectangle Property
Back row
Solid Dash Dot
Front row
Dash-dot Dash-dot-dot Null
