LBitmap::BricksTexture

Summary

Creates a brick texture that makes the image look like it has been drawn on a brick wall.

Syntax

#include "ltwrappr.h"

L_INT LBitmap::BricksTexture(uBricksWidth, uBricksHeight, uOffsetX, uOffsetY, uEdgeWidth, uMortarWidth, uShadeAngle, uRowDifference, uMortarRoughness, uMortarRoughnessEevenness, uBricksRoughness, uBricksRoughnessEevenness, crMortarColor, uFlags)

Parameters

L_UINT uBricksWidth

Flat area of the brick width, in pixels. Valid range is from 0 to the bitmap width.

L_UINT uBricksHeight

Flat area of the brick height, in pixels. Valid range is from 0 to the bitmap height.

L_UINT uOffsetX

The X distance between the bitmap origin and the first brick origin, in pixels.

L_UINT uOffsetY

The Y distance between the bitmap origin and the first brick origin, in pixels.

L_UINT uEdgeWidth

Perceived edge width, in pixels, which represents the brick edge width when the brick is viewed from the perpendicular to the front of the brick. Minimum value is 1. See the following figure:


L_UINT uMortarWidth

Mortar width, or the space between two adjacent bricks.

L_UINT uShadeAngle

Angle, in degrees, that identifies from which side the light will hit the brick edges, resulting in a brightening of the opposite angle edges, and the darkening of the other edges. Valid range is from 0 to 360.

L_UINT uRowDifference

Horizontal distance between the first brick of the first row and the first brick on the next row, in pixels. Setting this value to zero will make a grid-like wall. Valid range is from 0 to bitmap width.

L_UINT uMortarRoughness

Mortar roughness. Valid range is from 0 to 300. At 0, the mortar looks completely smooth. Use higher values to increase the roughness.

L_UINT uMortarRoughnessEevenness

Weathering factor for the mortar. Valid range is from 0 to 10. The higher the value the more weathered the mortar looks.

L_UINT uBricksRoughness

Brick roughness. Valid range is from 0 to 300. At 0, the brick looks completely smooth. Use higher values to increase the roughness of the brick surface.

L_UINT uBricksRoughnessEevenness

Weathering factor for the bricks. Valid range is from 0 to 10. The higher the value the more weathered the bricks look.

COLORREF crMortarColor

The COLORREF value that specifies the mortar color. You can specify a COLORREF value, such as the return value of the Windows RGB macro, or you can use the PALETTEINDEX macro to specify a palette color.

L_UINT uFlags

Flags that determine which type of brick edge to use, and which mortar style to use. You can specify no flags, one flag, or combine one flag from each group of flags by using a bitwise OR ( | ).

The following flags indicate which type of shading to use on the brick edges:

Value Meaning
BRICKS_SOLID [0x0000] Use bricks with solid edges.
BRICKS_SMOOTHEDOUT [0x0001] Use bricks with edges that fade from in to out.
BRICKS_SMOOTHEDIN [0x0002] Use bricks with edges that fade from out to in.

The following flags indicate which type of mortar to use:

Value Meaning
BRICKS_TRANSPARENTMORTAR [0x0000] Use transparent mortar.
BRICKS_COLOREDMORTAR [0x0010] Use crMortarColor mortar.

Returns

Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

Comments

This function creates a brick-like texture. Edges that are in the angle of the light source are brightened and the others are darkened. You can obtain the best result by applying this function on a medium brightness image.

Using the shading option of BRICKS_SMOOTHEDOUT results in bricks that have a more chiseled look than the same settings with a shading option of BRICKS_SMOOTHEDIN.

For an example, click here

This function supports 12- and 16-bit grayscale and 48- and 64-bit color images. Support for 12- and 16-bit grayscale and 48- and 64-bit color images is available only in the Document/Medical toolkits.

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Bricks Texture Function - Before

Bricks Texture Function - Before

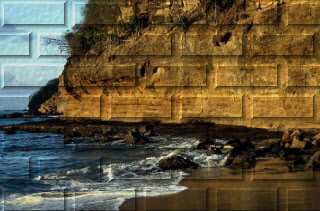

Bricks Texture Function - After

Bricks Texture Function - After

View additional platform support for this Bricks Texture function.

Required DLLs and Libraries

Platforms

Win32, x64.

See Also

Functions

Topics

Example

L_INT LBitmap__BricksTextureExample()
{
   L_INT nRet;
   LBitmap LeadBitmap;

   nRet =LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE1.CMP")), 0,ORDER_BGR);
   if(nRet !=SUCCESS)
      return nRet;

   nRet =LeadBitmap.BricksTexture(60, 20, 0, 0, 3, 4, 315, 33,
                                  20, 0, 10, 0, 0, BRICKS_SMOOTHEDOUT);

   if(nRet !=SUCCESS)
      return nRet;

   return SUCCESS;
}
