LBitmap::RemoveSaltPepperNoise

Summary

Removes the salt and pepper noise from the specified bitmap.

Syntax

#include "ltwrappr.h"

L_INT LBitmap::RemoveSaltPepperNoise()

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

This function works only on 8-bit images. It removes salt (pixels having a value of 255) and pepper (pixels having a value of 0) and replaces them with the median value of the non-noisy pixels around them.

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

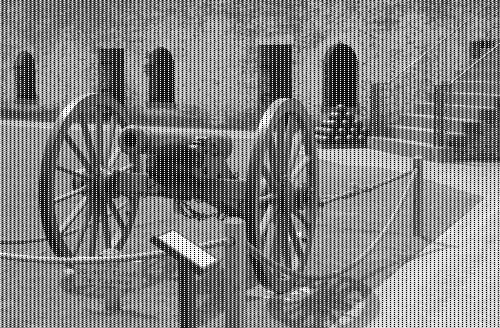

Salt and Pepper Removal Function - Before

Salt and Pepper Removal Function - After

View additional platform support for this Salt and Pepper Removal function.

Required DLLs and Libraries

LTDIS
LTFIL
LTIMGCOR
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

This example loads a bitmap and removes the salt and pepper noise from it (check the before and after images, and focus on the area in the middle).

#if defined (LEADTOOLS_V19_OR_LATER)
L_INT LBitmap__RemoveSaltPepperNoiseExample(L_VOID)
{
	L_INT nRet;
	LBitmap LeadBitmap;

	nRet = LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("cannon_noisy.png")), 0, ORDER_BGR);
	if (nRet != SUCCESS)
		return nRet;

	/* Apply filter */
	nRet = LeadBitmap.RemoveSaltPepperNoise();
	if (nRet == SUCCESS)
		nRet = LeadBitmap.Save(MAKE_IMAGE_PATH(TEXT("Result.BMP")), FILE_BMP, 24, 0, NULL);

	return nRet;
}
#endif // LEADTOOLS_V19_OR_LATER
