LBitmap::LevelsetBitmapRgn

Summary

Performs semi-automatic segmentation (using the Levelset algorithm) by shrinking or expanding a contour represented by a region to the objects in the image.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::LevelsetBitmapRgn(LambdaIn, LambdaOut)

Parameters

L_INT LambdaIn

Represents the weight of moving the contour inside. The default value is 1.

L_INT LambdaOut

Represents the weight of moving the contour outside. The default value is 1.

Returns

Value Meaning
SUCCESS The function was successful.
< 1 An error occurred. Refer to Return Codes.

Comments

If the image has no region this function assumes a rectangular region that covers the image.

The Levelset algorithm finds the best-fitting contour that encapsulates the object.

Equal values for lambdaIn and lambdaOut allow the algorithm to decide whether to shrink or expand the selected region.

This function supports 12- and 16-bit grayscale and 48- and 64-bit color images.

This function supports signed/unsigned images.

Levelset Region Function - Before

Levelset Region Function - Before

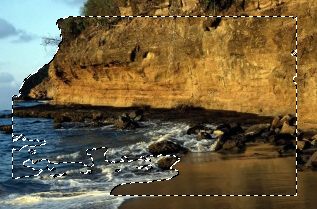

Levelset Region Function - After

Levelset Region Function - After

View additional platform support for this Levelset Region function.

Required DLLs and Libraries

Platforms

Win32, x64.

See Also

Example

#if defined (LEADTOOLS_V19_OR_LATER)
L_INT LBitmap__LevelsetBitmapRgnExample(L_VOID)
{
    L_INT nRet ;
    LBitmap LeadBitmap ;

    nRet = LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE3.dcm")), 0,ORDER_BGR);
    if(nRet !=SUCCESS)
        return nRet ;

    RECT MainRect ;
    MainRect.left   = 200 ;
    MainRect.right  = 300 ;
    MainRect.top    = 200 ;
    MainRect.bottom = 250 ;

    LBitmapRgn Region(&LeadBitmap);
    nRet = Region.SetRgnRect(&MainRect);
    if(nRet != SUCCESS)
        return nRet ;

    // found level set region
    nRet = LeadBitmap.LevelsetBitmapRgn(1, 1) ;
    if( nRet !=SUCCESS )
        return nRet ;

    return SUCCESS;
}
#endif // LEADTOOLS_V19_OR_LATER
