LBitmap::Ocean

Summary

Reflects the bitmap on an ocean surface.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::Ocean (uAmplitude, uFrequency, bLowerTrnsp, uFlags = 0)

Parameters

L_UINT uAmplitude

Wave magnitude, in pixels.

L_UINT uFrequency

Number of repeated waves.

L_BOOL bLowerTrnsp

Flag that indicates the transparency direction. Possible values are:

Value	Meaning
TRUE	Transparency increases as you move from the bottom of the bitmap to the top of the bitmap, line by line.
FALSE	Transparency increases as you move from the top of the bitmap to the bottom of the bitmap, line by line.

L_UINT32 uFlags

Reserved for future use. Must be 0.

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

If the bitmap has a region, the effect will be applied on the region only.

This function supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.

For an example, click here

To obtain this effect, the following settings were used with the function:

uAmplitude=15
uFrequency=20
bLowerTrnsp=TRUE

This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.

This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.

Ocean Function - Before

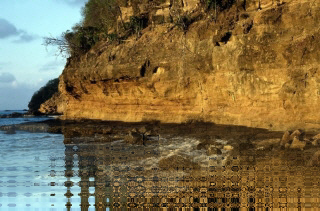

Ocean Function - After

View additional platform support for this Ocean function.

Required DLLs and Libraries

LTIMGSFX
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

L_INT LBitmap__OceanExample(LAnimationWindow *BitmapWindow)
{

   return BitmapWindow->Ocean(20,6,true);

}
