LBitmap::WatershedBitmap

Summary

Separates the image into different segments using the Watershed algorithm.

Syntax

#include "ltwrappr.h"

virtual L_INT LBitmap::WatershedBitmap(ppPoints, pLengths, nSize)

Parameters

L_POINT** ppPoints

Holds the initial point/path that represents the point or path from which to segment the bitmap.

L_INT* pLengths

Number of points in each path.

L_INT nSize

Number of paths.

Returns

Value	Meaning
SUCCESS	The function was successful.
< 1	An error occurred. Refer to Return Codes.

Comments

Each segment's pixels have the same color. The Watershed algorithm treats an image as if it were a topographic surface.

The dark areas are basins. The light areas are the ridges around the basins.

The user is responsible for determining the number of output segments and the location of each segment in the input array.

This function supports 8- and 16-bit grayscale and colored images and 24- and 32-bit colored images.

This function does not support 32-bit grayscale images.

This function supports signed/unsigned images.

Watershed Segmentation Function - Before

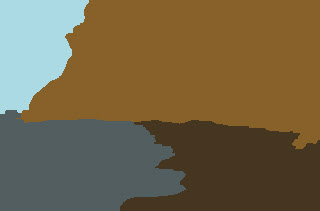

Watershed Segmentation Function - After

View additional platform support for this Watershed Segmentation function.

Required DLLs and Libraries

LTDIS
LTFIL
LTIMGCOR
For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.

Platforms

Win32, x64.

Example

#if defined (LEADTOOLS_V19_OR_LATER)
L_INT LBitmap__WatershedBitmapExample(L_VOID)
{
    L_INT nRet;
    LBitmap LeadBitmap;

    nRet =LeadBitmap.Load(MAKE_IMAGE_PATH(TEXT("IMAGE3.dcm")), 0,ORDER_BGR);
    if(nRet !=SUCCESS)
        return nRet ;

    /* Apply a WatershedBitmap filter */
    L_POINT* ppPoints[4] = {} ;
    L_INT Lengths[4]  = {} ;
    L_INT nSize = 4 ;

    for(L_INT i = 0 ; i < nSize; i++)
    {
        Lengths[i]  = 2 ;
        ppPoints[i] = (L_POINT*) malloc(Lengths[i]*sizeof(L_POINT));
        if ( ppPoints[i] == NULL )
        {
            for( L_INT j = 0 ; j < nSize ; j++ )
            {
                if ( ppPoints[j] != NULL )
                {
                    free(ppPoints[j]) ;
                }
            }

            return ERROR_NOT_ENOUGH_MEMORY ;
        }
    }

    ppPoints[0][0].x = 35 ; ppPoints[0][0].y = 100 ;
    ppPoints[0][1].x = 35 ; ppPoints[0][1].y = 200 ;

    ppPoints[1][0].x = 180 ; ppPoints[1][0].y = 115 ;
    ppPoints[1][1].x = 300 ; ppPoints[1][1].y = 115 ;

    ppPoints[2][0].x = 235 ; ppPoints[2][0].y = 220 ;
    ppPoints[2][1].x = 260 ; ppPoints[2][1].y = 220 ;

    ppPoints[3][0].x = 180 ; ppPoints[3][0].y = 330 ;
    ppPoints[3][1].x = 350 ; ppPoints[3][1].y = 330 ;

    nRet = LeadBitmap.WatershedBitmap(ppPoints, Lengths, nSize);

    for( L_INT j = 0 ; j < nSize ; j++ )
    {
        free(ppPoints[j]) ;
    }

    return nRet ;
}
#endif // LEADTOOLS_V19_OR_LATER
