LBitmap::Desaturate
Summary
Converts the image to a grayscale level by reducing the saturation of each color to zero. The conversion will not change the color resolution.
Syntax
#include "ltwrappr.h"
virtual L_INT LBitmap::Desaturate(uFlags = 0)
Parameters
L_UINT32 uFlags
Reserved for future use. Must be 0.
Returns
| Value | Meaning |
|---|---|
| SUCCESS | The function was successful. |
| < 1 | An error occurred. Refer to Return Codes. |
Comments
The bitmap is converted to a grayscale level by reducing the saturation of each color to zero.
This function supports only RGB images. It does not support grayscale images.
Support for 48-bit and 64-bit colored images are available only in the Document/Medical toolkits.
To update a status bar or detect a user interrupt during execution of this function, refer to LBase::EnableStatusCallback.
This function does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this function.
This function does not support 32-bit grayscale images. It returns the error code ERROR_GRAY32_UNSUPPORTED if a 32-bit grayscale image is passed to this function.
Desaturate Function - Before

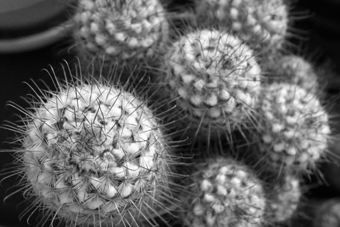

Desaturate Function - After
View additional platform support for this Desaturate function.
Required DLLs and Libraries
- LTIMGCLR
- For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application.
Platforms
Win32, x64.
See Also
Functions
Topics
- Raster Image Functions: Modifying Intensity Values
- Grayscale Images
- Color Halftones and Halftone Images
- Raster Image Functions: Working with Color Halftones, Halftones, and Grayscale Images
Example
L_INT LBitmap__DesaturateExample(LAnimationWindow *BitmapWindow){return BitmapWindow->Desaturate();}
